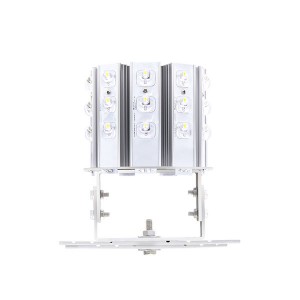

LED Post Top Retrofit Kits
2GLRT Series
Green Inova released the new generation Post Top Retrofit kit which is an energy-efficient and perfect solution for replacing traditional metal halides and high pressure sodium sources in post to fixtures.
With excellent optical design,it can reduce light pollution by eliminating upward light emission. Lamp includes an external UL LED driver for better thermal management ensures long life.
They are rated for a long 100,000-hour lifespan and are backed by Green Inova’s 6-year limited warranty.
Specificaion Summary
Typical Model | GI-2GLRT-22-40-X | GI-2GLRT-22-45-X | GI-2GLRT-22-50-X |
Power (W) | 22W | 22W | 22W |
Color Temperature (CCT) | 4000K | 4500K | 5000K |
Lumen Output (LM) | 2,019 | 2,044 | 2,044 |
Efficacy (lm/W) | 95 | 95 | 97 |
Input Voltage (V) | 100-277V | ||
Power Factor | >90% | ||
THD | <20% | ||
CRI | 73 | ||
Beam Angle (°) | 10°-70° | ||
Lens | Optic Lens | ||
Dimensions (in) | 3.93"Φ x 5.34"L | ||
LED Class | Nichia, UL Listed: LM80 | ||
Driver Class | UL Listed: Class II | ||
Controls | Dimming, Photocell, Motion sensor, Surge protection available | ||
Operating Temperature | –25°C to +45°C | ||
Certifications | cETLus, LM79, LM80 | ||
L70 Lifetime (hours) | 150,000 hours per L70 TM-21@ 25°C | ||
Warranty | 6-year limited system warranty |
Features
• High output Nichia LEDs deliver up to 97 LPW
• External UL LED driver to ensure reliability and performance
• Die-casting aluminum heat sink, LED TC<75°C(25°C ambient)
• Excellent thermal management ensures long lifespan
• Over temperature protection system
• Innovative optic design, significantly reduces upward light
• Compliance to Dark Sky requirement
• Quick and easy installation
• Reduces energy and maintenance costs over 80%
Housing & Finish
• Die-casting aluminum heat sink
• Optic Lens
Product Details
Innovative Optic design(Patent)
1. Meet with the Dark sky standard,no uplight.
2. Delivering light where you need it, no light waste.
Latest Nichia Technology chips
1.Long L90 lifetime:using Nichia's latest LED technology, the L90 life is 60% longer than Philips 3030 LEDs.
2. Import from Japan Nichia directly.
3.Super high light efficacy.
4. Engineered with proprietary binned LM-80-rated LEDs,which are specially rated for higher thermal performances, provide uniform color consistency.
5.To make the color more consistent, we always use the exact same bin for all the lights in a single project. We finer tune the binning.
New Patented heat sink design
1. Adopting high quality material of high structural intensity.
2. Up and down heat sink desigh,fast the air convection.Excellent Thermal Management ensures long life.
3. Light-weight,easy to ship and install.
Installation
14 & 22W use special "X bracket", while 40W & 51W use screw-in base for easy installation.
Application
• Replaces existing metal halide and HPS lamps in post top fixtures
