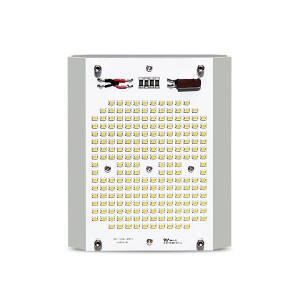

LED Lighting Retrofit Kits 75W
LED Retrofit Kits
The Green Inova LED Retrofit Kit is designed to allow cost affordable conversion from MH/HPS/HID applications to LED. They are the perfect tool for accessing the cost-savings and low maintenance of LED lighting, without replacing entire fixtures.
Retrofit kits feature a compact size to fit into all types of existing fixtures include wall pack, flood light boxes, Area Light, high-bay and Street light applications.
Specificaion Summary
| Typical Model | GI-5RFK-75-40 | GI-5RFK-75-45 | GI-5RFK-75-50 |
| Power (W) | 75W | 75W | 75W |
| Color Temperature (CCT) | 4000K | 4500K | 5000K |
| Lumen Output (LM) | 8,964 | 9,038 | 9,112 |
| Efficacy (lm/W) | 125 | 126 | 126 |
| Input Voltage (V) | 100-277V | ||
| Power Factor | >93% | ||
| THD | <12% | ||
| CRI | 73 | ||
| Beam Angle (°) | 120° | ||
| Installation | Horizontal / Vertical | ||
| Dimensions (in) | 6.10"x 5.12"x1.97" | ||
| LED Class | Nichia, UL Listed: LM80 | ||
| Driver Class | Meanwell, UL Listed: Class II | ||
| Controls | Dimming, Photocell, Motion sensor, Surge protection available | ||
| Operating Temperature | -35°C to 55°C | ||
| Certifications | ETL/cETL, LM79, LM80 | ||
| L70 Lifetime (hours) | ≥200,000 hours | ||
| Warranty | 10-year limited on LED head, 5-year limited on driver | ||
Features
Optics
• High output Nichia LEDs deliver up to 132 LPW
• Top brand Mean Well driver
• Upgraded unique and uniform modular design
• Light weight, more durable
• AL 6063 material of high structural intensity
• Unique and excellent thermal management ensures long life
• Over temperature protection system
• Various controls options meet any needs
• Adjustable and flexible brackets for retrofit a majority of fixtures
• Quick and easy installation
• Reduces energy and maintenance costs over 80%
• Beam angle: 120° standard
Warranty
• 10-year limited on LED head, 5-year limited on driver
Mountings
• Horizontal Installtion: Using "L " bracket
• Vertical Installation: Using "Flat Plates " bracket
Product Details
Real Mean Well driver
One of our subsidiary corporations is a Mean Well distributor, allowing us quality source for Mean well drivers.
New Patented heat sink design
1. Adopting AL6063 material of high structural intensity.
2. Lower profile heat sink design, more slim.
3. Flat outer surface on the heat sink, more elegant.
Latest Nichia Technology chips
1.Long L90 lifetime: using Nichia' s latest LED technology, the L90 life is 60% longer than Philips 3030 LEDs.
2. Import from Japan Nichia directly
3.Super high light efficacy.
4.Engineered with proprietary binned LM-80-rated LEDs, which are specially rated for higher thermal performances, provide uniform color consistency.
5.To make the color more consistent, we always use the exact same bin for all the lights in a single project. We finer tune the binning.
Sunon Fan Technology
1. Unique design with fan (fans) inside, more uniform structure.
2. Smaller size, almost zero noise.
3. 70,000+ hour operating life suitable for 24/7 operation, providing an exceptionally cool running LED unit, efficiently transferring the heat from the heat sink to the outer surface.
Qaulity Control
IQC
1.Most stringent raw material selection.
2.100% inspection of incoming raw materials.
IQC
1. Testing all PCB after soldering with electricity.
2. Integrating sphere testing
3. Waterproof testing
4. Cooling effect testing.
5. 100% 48 hours aging testing(72 hours for high voltage products).
FQC
1. 100% appearance checking
2. 100% lable checking
3. 100% function checking
Mass Production
Mountings
Installation Process
How to install the DLC ETL cETL 75w LED retrofit into the traditional fixtures?
All models are simply installed in 4 mins by Yoke bracket or the Flex bracket. ( Remark: USE A LICENSED ELECTRICIAN TO PERFORM THE INSTALLATION.)
1). Remove the plastic cover from the LED head.
2). Remove the existing component reflector and ballast inside the fixures.
3). Put the driver in the place of the previous ballast.
4). Mouning the pre-assembled bracket to the fixtures.
5). Fix the retrofit kit to the the pre-assembled bracket.
6). Connect the electric wires.
Application
Replaces existing metal halide and HPS lamps in street lights, wall packs, canopies, high bays and low bays fixtures, suitable for both vertical and horizontal installation
