LED Barn Light 35W Dusk To Dawn Barn Light LED Barn Light Fixture LED Barn Security Light Outdoor Barn Lights(4BL Series)
Description
Green Inova®‘s LED Barn Light utilizes prismatic lens replicating the form and function of 150W high pressure sodium or 175W metal halide fixtures, while using only 35W and 45W. Lighting efficacy up to 119lm/w, over 70% energy saving.
Optimized thermal design with high quality die-cast aluminum, features excellent heat dissipation, LED TC<75°C(25°C ambient). Excellent thermal management ensures long life, 100,000 hours per L70 TM-21@25°C.
The fixture can be Wall-Mounted directly to electrical boxes or Arm/Posts with a round mounting arm.
With twist photocell for dusk to dawn operation making it ideal for buildingand post-mounted doorway, pathway, and yard illumination in nearly any
facility.
Specification Summary
| Typical Model | 4BL35L40B1P | 4BL35L45B1P | 4BL50L40B1P |
| Power (W) | 35W | 35W | 35W |
| Color Temperature (CCT) | 4000K | 4500K | 5000K |
| Lumen Output (LM) | 3507 | 3507 | 3327 |
| Efficacy (lm/W) | 104 | 104 | 99 |
| Input Voltage (V) | 100-277V | ||
| Power Factor | >90% | ||
| THD | <20% | ||
| CRI | 73 | ||
| Optics | UV Resistant High Quality Primastic Lens | ||
| Beam Angle | Type V | ||
| LED Class | UL Listed: LM80 | ||
| Driver Class | UL Listed: Class II | ||
| Controls | Sensors available | ||
| Environment | Wet Locations | ||
| Operating Temperature | –25°C to +45°C | ||
| Certifications | UL/cUL, LM79, LM80 | ||
| L70 Lifetime (hours) | 150,000 hours per L70 TM-21@ 25°C | ||
| Warranty | 6-year limited system warranty standard | ||
Features
Controls
• High system efficacy up to 119 LPW
• Class II UL listed driver
• Die-casting aluminum heat sink, LED TC<75°C (25°C ambient)
• Excellent thermal management ensures long lifespan
• UV resistant high quality prismatic lens
• Environmentally friendly surface finish
• Includes standard twist photocell for dusk to dawn operation
• Various controls to achieve high energy saving
• Reduces energy consumption over 70%
Electrical
• 100-277V, and 347-480V available
• System power factor >90% and THD <20%
Housing & Finish
• Die-casting aluminum heat sink
• UV resistant high quality prismatic lens
• Bronze finish standard, black and white optional
• RAL & custom colors available
• Twist-Lock Photocell sensor (Std.)
Accessories
• 24’’ round arm (Std.)
• Twist-Lock Photocell sensor (Std.)
Compliance
• DLC Standard
• UL/cUL listed
• UL 1598 suitable for wet locations
• LM79, LM80 test reports
• CE & RoHS available
Ratings
• 100,000 hours per L70 TM-21@25°C
• Temperature rated at -30°C to +40°C
Warranty
• 6-year limited system warranty
Optics
• Beam Angle: Type V

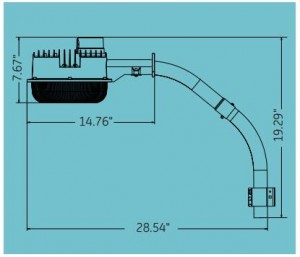

LED Barn Light Dimension
LED Barn Light Installation Options
• Wall Mount
• Arm Mount
Advantages of LED Barn Light
1. Die-cast aluminum gasketed enclosure.
2. Protective powder coating for lasting appearance.
3. All-in-one heat sink with perfect structure maxim heat dissipation.
4. Low profile, durable die-casting aluminum construction, providing a reliable weather-tight seal.
Applications for LED barn light
• Indoor & outdoor lighting
• Doorways, driveways, yards, properties and work areas, etc.
