LED Retrofit Kits

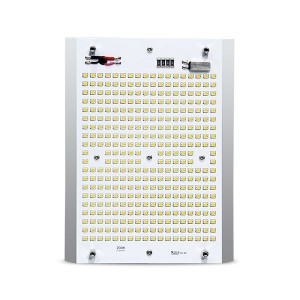

Green Inova®‘s 5th generation LED retrofit kit is an innovative and revolutionary product. As the original designer and leading manufacturer of LED retrofit kits in China, we have one of the most efficient LED Retrofit Kit available on the market today, and also have both USA and China’s Design & Utility Patents.
The LED retrofit produces 12,412 lumens with a wattage of 100W to replace a 200-300W HID fixture. You keep your fixture and replace the bulb and ballast with LED Head and LED Driver. Simple, quick, fast, economical - and you get to re-use your investment in your paid-for fixtures.
These retrofits have a unique mounting bracket to mount vertically or horizontally inside wall pack, flood light, shoebox, canopy and round high bay fixtures.
Specificaion Summary
| Typical Model | GI-5RFK-100-40 | GI-5RFK-100-45 | GI-5RFK-100-50 |
| Power (W) | 100W | 100W | 100W |
| Color Temperature (CCT) | 4000K | 4500K | 5000K |
| Lumen Output (LM) | 12,412 | 12,460 | 12,509 |
| Efficacy (lm/W) | 125 | 126 | 126 |
| Input Voltage (V) | 100-277V | ||
| Power Factor | >93% | ||
| THD | <12% | ||
| CRI | 73 | ||
| Beam Angle (°) | 120° | ||
| Installation | Horizontal / Vertical | ||
| Dimensions (in) | 6.10"x 5.12"x1.97" | ||
| LED Class | Nichia, UL Listed: LM80 | ||
| Driver Class | Meanwell, UL Listed: Class II | ||
| Controls | Dimming, Photocell, Motion sensor, Surge protection available | ||
| Operating Temperature | -35°C to 55°C | ||
| Certifications | ETL/cETL, LM79, LM80 | ||
| L70 Lifetime (hours) | ≥200,000 hours | ||
| Warranty | 10-year limited on LED head, 5-year limited on driver | ||
Features
Optics
• High output Nichia LEDs deliver up to 132 LPW
• Top brand Mean Well driver
• Upgraded unique and uniform modular design
• Light weight, more durable
• AL 6063 material of high structural intensity
• Unique and excellent thermal management ensures long life
• Over temperature protection system
• Various controls options meet any needs
• Adjustable and flexible brackets for retrofit a majority of fixtures
• Quick and easy installation
• Reduces energy and maintenance costs over 80%
• Beam angle: 120° standard
Warranty
• 10-year limited on LED head, 5-year limited on driver
Mountings
• Horizontal Installtion: Using "L " bracket
• Vertical Installation: Using "Flat Plates " bracket
Installation Process
How to install the DLC ETL cETL 100w LED retrofit into the traditional fixtures?
All models are simply installed in 4 mins by Yoke bracket or the Flex bracket. ( Remark: USE A LICENSED ELECTRICIAN TO PERFORM THE INSTALLATION.)
1). Remove the plastic cover from the LED head.
2). Remove the existing component reflector and ballast inside the fixures.
3). Put the driver in the place of the previous ballast.
4). Mouning the pre-assembled bracket to the fixtures.
5). Fix the retrofit kit to the the pre-assembled bracket.
6). Connect the electric wires.
Qaulity Control
IQC
1.Most stringent raw material selection.
2.100% inspection of incoming raw materials.
IQC
1. Testing all PCB after soldering with electricity.
2. Integrating sphere testing
3. Waterproof testing
4. Cooling effect testing.
5. 100% 48 hours aging testing(72 hours for high voltage products).
FQC
1. 100% appearance checking
2. 100% lable checking
3. 100% function checking
Mass Production
Mountings
Application
Replaces existing metal halide and HPS lamps in street lights, wall packs, canopies, high bays and low bays fixtures, suitable for both vertical and horizontal installation
