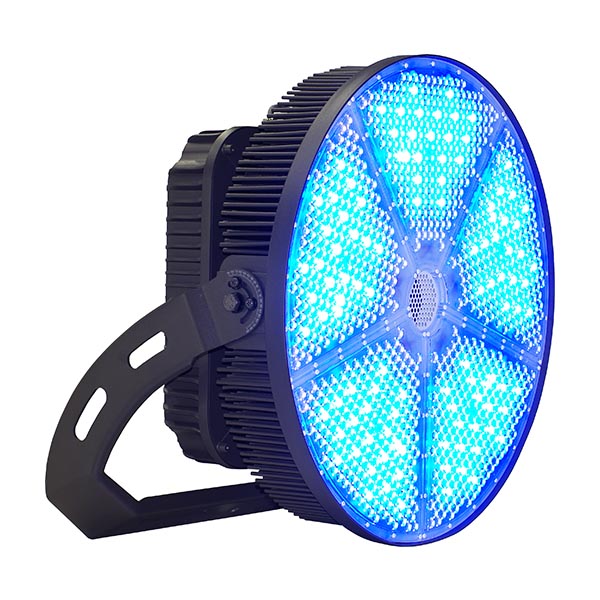

Blue Light 920W Navigation and Fishing Flood Lights

Short Description:

Wattage: 920W

Voltage: 100-277Vac

Lumens: 19,320 LM

Color: Blue

Driver: Mean Well

Fixture Color: Bronze

IP Rating: IP66

Average Lifespan: 50,000 hours

Warranty: 2-year limited

Send email to us Brochure DLC-QPL List

Product Detail

Product Tags

https://www.greeninovaled.com/products/led-fishing-boat-trawler-lighting/

Description

Green Inova has come out latest LED Fishing Light, it is not only assist navigation, but increase the harvest in each sailing( Perfect to attracting fish), available in 240W, 320W, 480W, 720W, 920W, 1100W.

IP68 waterproof ability to resist water splash from all directions, it can prevent the sea water from entering the lamp body. The LED can work even in massive sea wave.

The excellent thermal management with cold-forging heat sink and unique heat dissipation structure makes it much better cooling system than other competitives, enables longer lifespan, almost free of maintenance.

Specification Summary

Typical Model	5H920B
Power (W)	920W
Light Color	Blue (others available)
Lumen Output (LM)	19,320 LM
Input Voltage (V)	100-277V
Dimensions (in)	Φ21.12" × L7.95"
Fixture Color	Bronze(STD.)
IP Rating	IP66
IK Rating	IK10
Anti-wind Test	Withstand class 17 typhoon
Beam Angle (°)	16°, 40°, 90°
Driver Brand	Meanwell
Weight	28.9 kgs
SPD	20KV or 40KV
Environment	Indoor or outdoor
Operating Temperature	–30°C to +40°C
Certifications	UL/cUL, CB, CE, ENEC, ROHS pending
L70 Lifetime (hours)	>50,000 Hrs (L70 @ 25°C)
Warranty	2-year warranty for 100-277V version

Features

• Perfect for attracting fish
• Color Choices: green or blue
• Input voltage: 100-277 VAC
• High protection level up to IP68
• High impact resistance, meeting IK10
• Low EPA design, anti 17-level wind power
• High vibration resistance, meeting 3G standards
• Aluminum powder coated fixture
• 304 stainless steel mounting brackets and hardwares
• LED Lifespan: 50,000 hours
• Warranty: 2 years (extendable to 5 years for continental non-fishing applications)
• Optimal mounting height: between 8 -15 feet above the water

Beam Angle

Optics of this 920W version are 16°, 40°, 60°, 90° optional. A variety of lighting distributions, UV stabilized materials.

Extraordinary Thermal Management

The professional and unique pin heat sink design creates superb ventilative efficiency. Air is freely flowable among the pins in any direction, maximizing heat dissipation and lifespan of the LEDs.

Advantage of our pin heatsink: Incoming air from any direction moves approximately straight forward through the pins, bringing away heat quickly. Comparing to other typical radiant-fin heatsink, incoming air is deflected and slowed down by the radiant fins, moving heat slowly.

High Thermal Conductivity

We use A1070 pure Aluminum, with 223 w/m.k thermal conductivity (VS. Typical ADC12 Aluminum with only 98 w/m.k)

Slim and Lightweight

Optimized engineered design, slim and lightweight, no clunky components, significantly reducing shipping and labor, and safer to use on your existing infrastructure.
