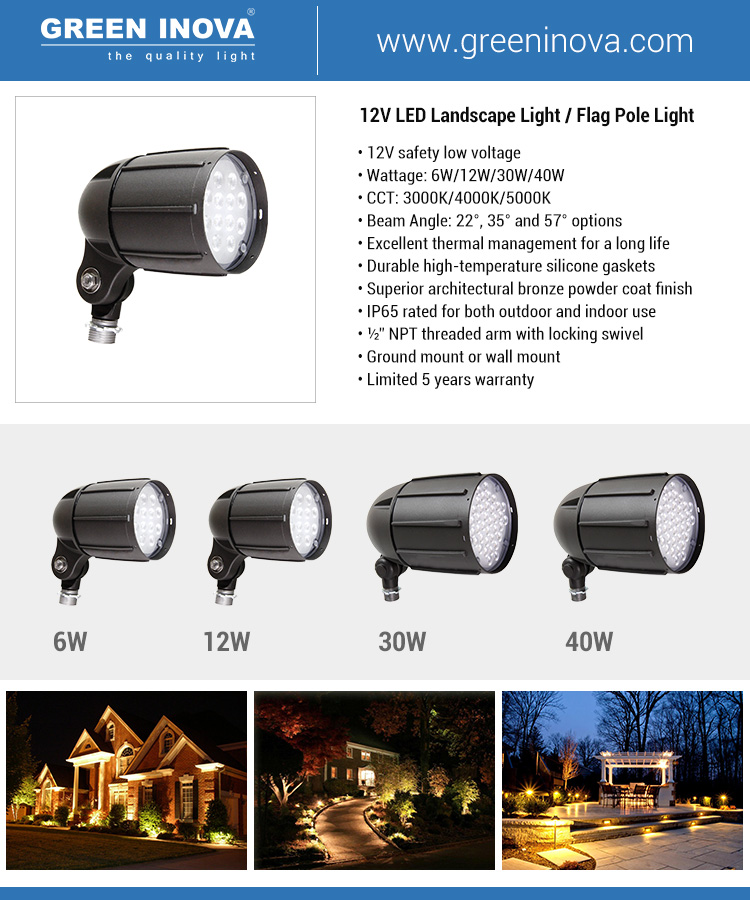

30W 12V LED Lanscape Light 30W NEW LED Garden Light LED Landscape Lighting IP65 Waterproof Garden Lights (5BF 12V Series)

Short Description:

Wattage: 30W

Voltage: 12V AC / 12V DC

Lumen: 3184 LM

CCT: 3000K/4000K/5000K

Optics: Die-cast aluminum + Optical lens

Beam Angle: 22°/35°/57°

Warranty: 5-year limited system warranty standard

Send email to us Brochure DLC-QPL List

Product Detail

Product Tags

Description

Green Inova ® ‘s 5th Gen. LED Bullet Flood light delivers exceptional illumination performance by using Latest LED Technology, efficacy up to 110 LPW, and it can replace up to 150W metal halide, energy saving over 80%.
Sealed to keep out dirt, bugs and moisture, the luminaire is constructed with a precision die-cast aluminum housing and optical lens for a sleek appearance and maximum durability.

Specification Summary

Typical Model	5BF30LV30BN	5BF30LV40BM	5BF30LV50BW
Power (W)	30W	30W	30W
Color Temperature (CCT)	3000K	4000K	5000K
Lumen Output (LM)	3,184	3,184	3,184
Efficacy (lm/W)	110	110	110
Input Voltage (V)	12V AC / 12V DC
Power Factor	>90%
THD	<20%
CRI	73
Beam Angle (°)	22°/35°/57°
Dimensions (in)	6.25''(L) x 6.91''(H) x 4.66'' (W)
LED Class	LM80
Environment	Wet Locations
Operating Temperature	–30°C to +40°C
L70 Lifetime (hours)	150,000 hours per L70 TM-21@ 25°C
Warranty	5-year limited system warranty standard

Features

Controls

• High system efficacy up to 110 LPW
• Die-casting Aluminum heat sink, LED TC<75°C (25°C ambient)
• Excellent thermal management ensures long lifespan
• Sealed to keep out dirt, bugs and moisture
• Environmentally friendly surface finish
• Multiple optics allowing flexible designs
• Various controls to achieve high energy saving
• Reduces energy consumption over 70%

Optics

• Distribution Tight: 22° for spot areas
• Distribution Medium: 35° for general areas
• Distribution Wide: 57° for larger areas

Electrical

• 12V AC / 12V DC
• System power factor >90% and THD <20%

Ratings

• 150,000 hours per L70 TM-21@25℃
• Temperature rated -30°C to +40°C

• Non Dimmable

Housing & Finish

• Die-casting Aluminum body
• Bronze finish standard, black and white optional
• RAL & custom colors available

Accessories

• Shroud
• Lamp holder cover
• Ground stake

Compliance

LM80 Test Reports

Warranty

• 5-year limited system warranty
* Please refer to Green Inova’s warranty term for complete information.

Advantages

Product Details

1.Long L90 lifetime: using latest LED technology, the L90 life is longer than Philips 3030 LEDs.
2.Super high light efficacy.
3.Engineered with proprietary binned LM-80-rated LEDs, which are specially rated for higher thermal performances, provide uniform color consistency.
4.To make the color more consistent, we always use the exact same bin for all the lights in a single project. We finer tune the binning.

Options

1. Shroud optional when need to gather the lighting.
2. Lamp holder cover, base and ground stake optional for variety applications.
3. Optional beam angle: 22°/35°/57°
4. Finish color optional: Bronze stanard, balck and white optional

Constructions

1. Die cast aluminum heat sink make LED TC<75℃
2. Sealed to keep out dirt and bug, IP65 rated
3. Die-cast aluminum + Optical lens
4. Weep hole located on lower lip of fixture to prevent water buildup
5. Environmentally friendly surface finish
6. Wall mount and ground mount are available

Dimension

6W/12W 30W/40W

Installation Options

Wall mount and ground mount are available.

Wall Mount

Ground Mount

Applications

• Indoor & outdoor lighting
• Landscape lighting
• Building lighting
• Flag pole lighting

The IP65 rated fixture, can be surface mounted directly to electrical boxes or posts with a 1/2” threaded bushing. Available with spot and flood optics making it ideal for an array of commercial and outdoor applications, including landscape, structural accent, building details and flag pole lighting.
